TrackMe theme for Tabulator

Theme for TrackMe main table component (Tabulator JS)

  • TrackMe heavily uses a key component called Tabulator JS.

  • This component is used to display data in many forms, allowing various powerful and efficient user interactions in TrackMe.

  • Since TrackMe 2.0.87, we have added capabilities to customise the look and feel of the Tabulator component.

  • As an administrator, you can choose the default system level Tabulator theme for both TrackMe’s Virtual Tenant UI and the home tenants UI.

  • These preferences can be user on a per user level, if set the user level preferences take precedence over the system wide settings.

Configuring the Tabulator theme & Icons theme preferences for Virtual Tenant UI & Home Tenant UI

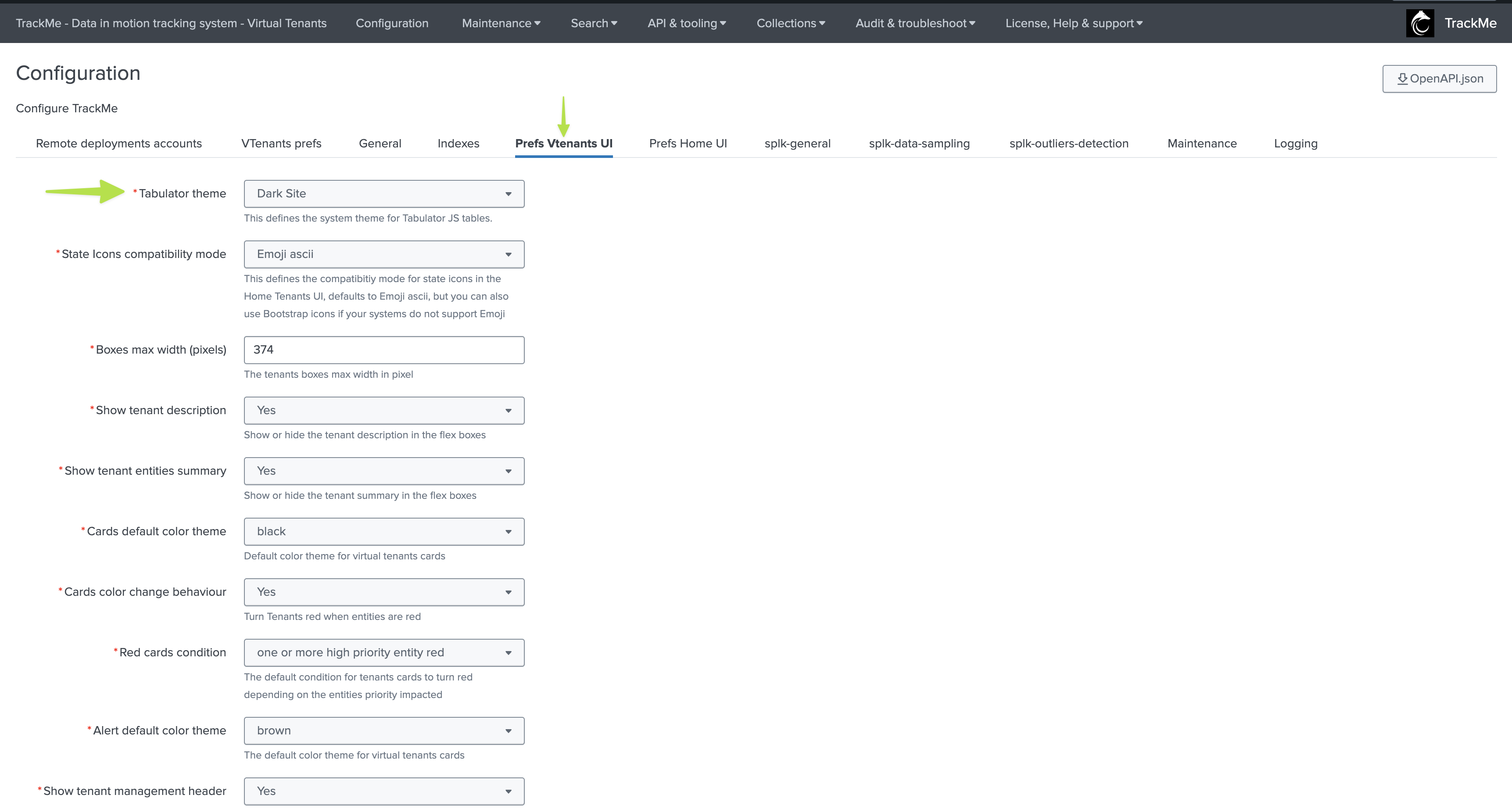

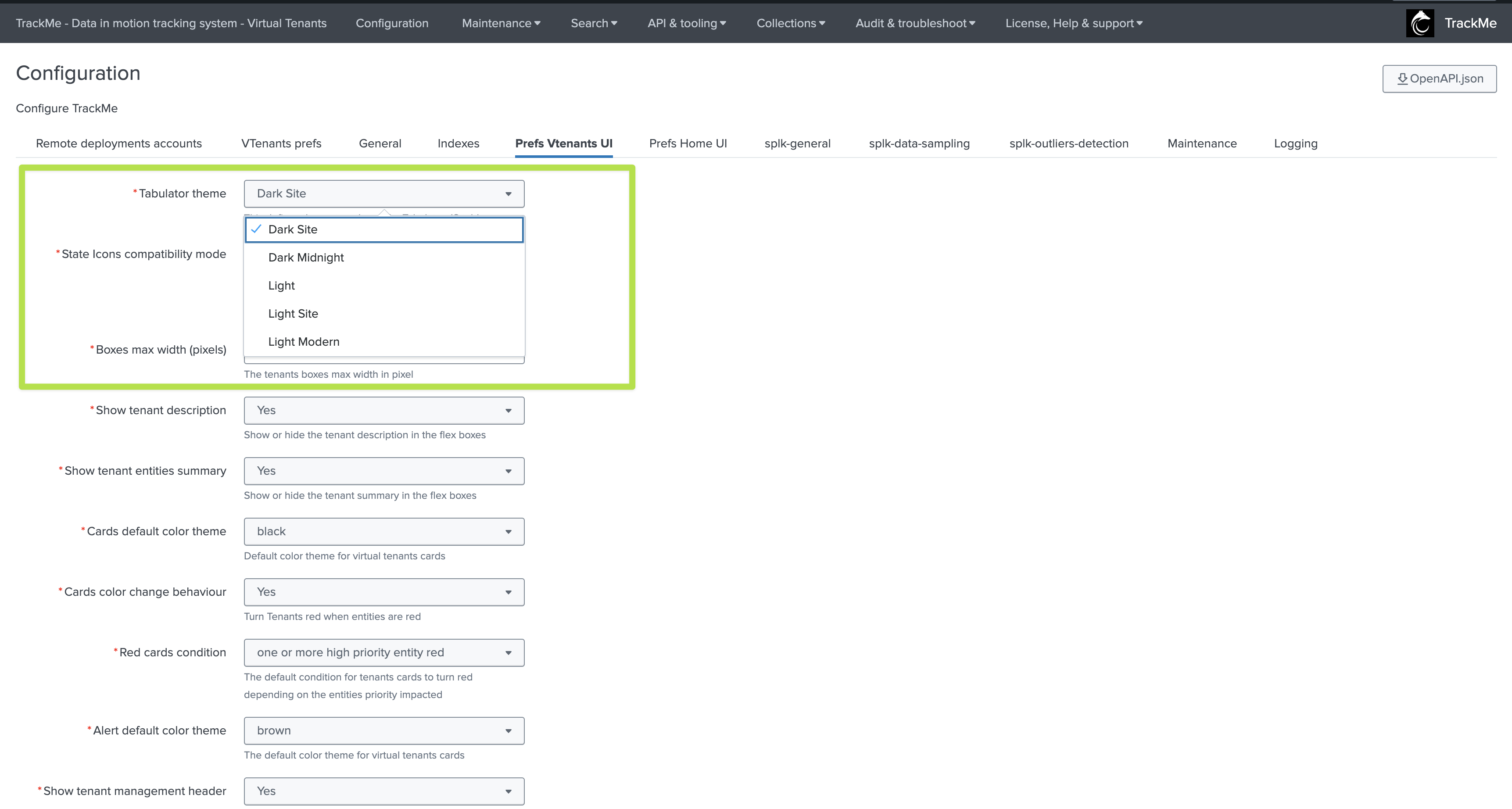

In TrackMe’s configuration UI, you can choose the Tabulator theme:

Example for the Virtual Tenant UI:

screen001.png screen02.png

Note: these are system wide settings, and will be effective for all TrackMe users.

User level configuration for Tabulator theme & Icons theme preferences

From the TrackMe Virtual Tenant user UI, any user can define its own set of preferences:


If a user has no preferences set, the system wide settings will be used.

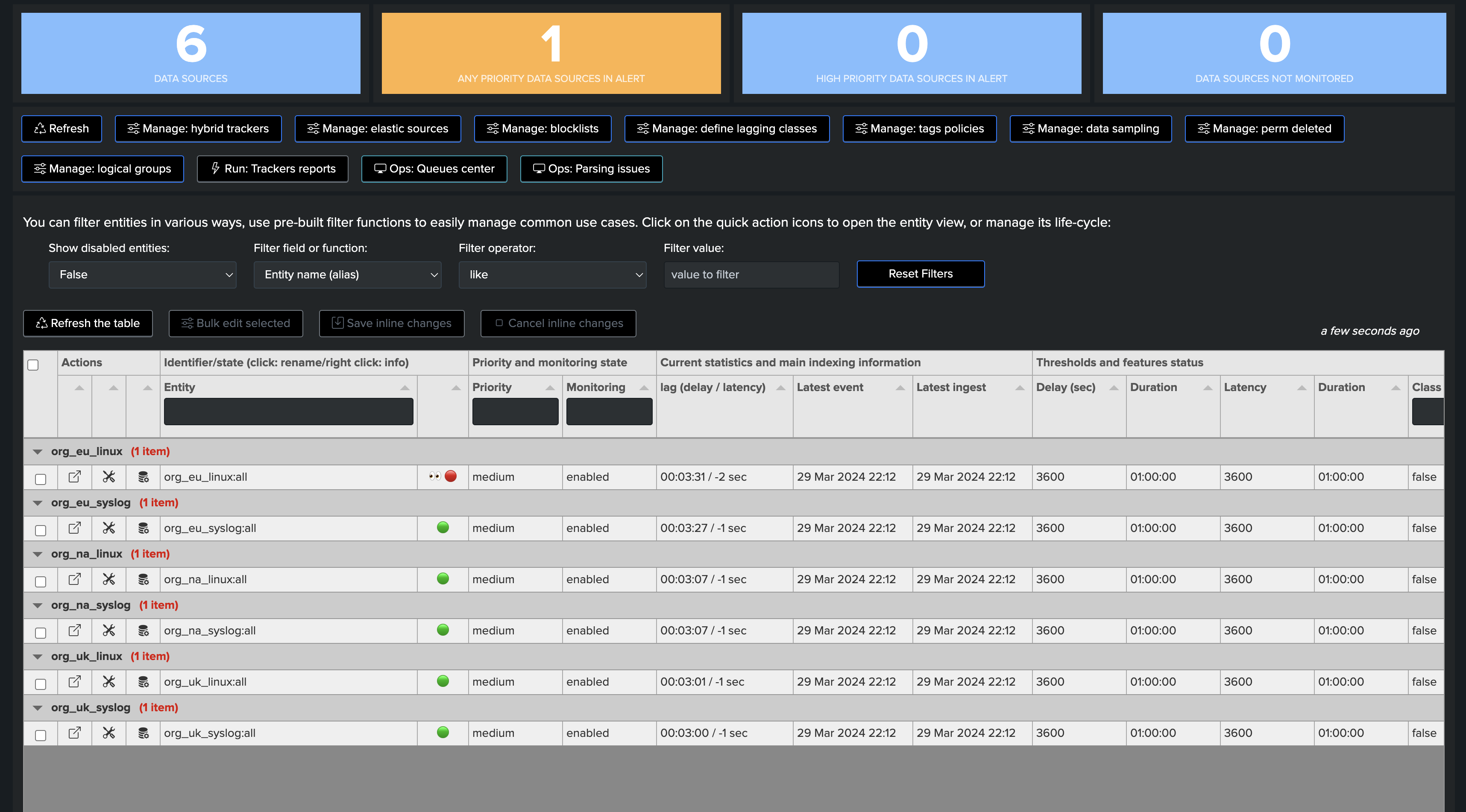

Dark Site theme

This is the default Tabulator theme, starting from TrackMe 2.0.87:

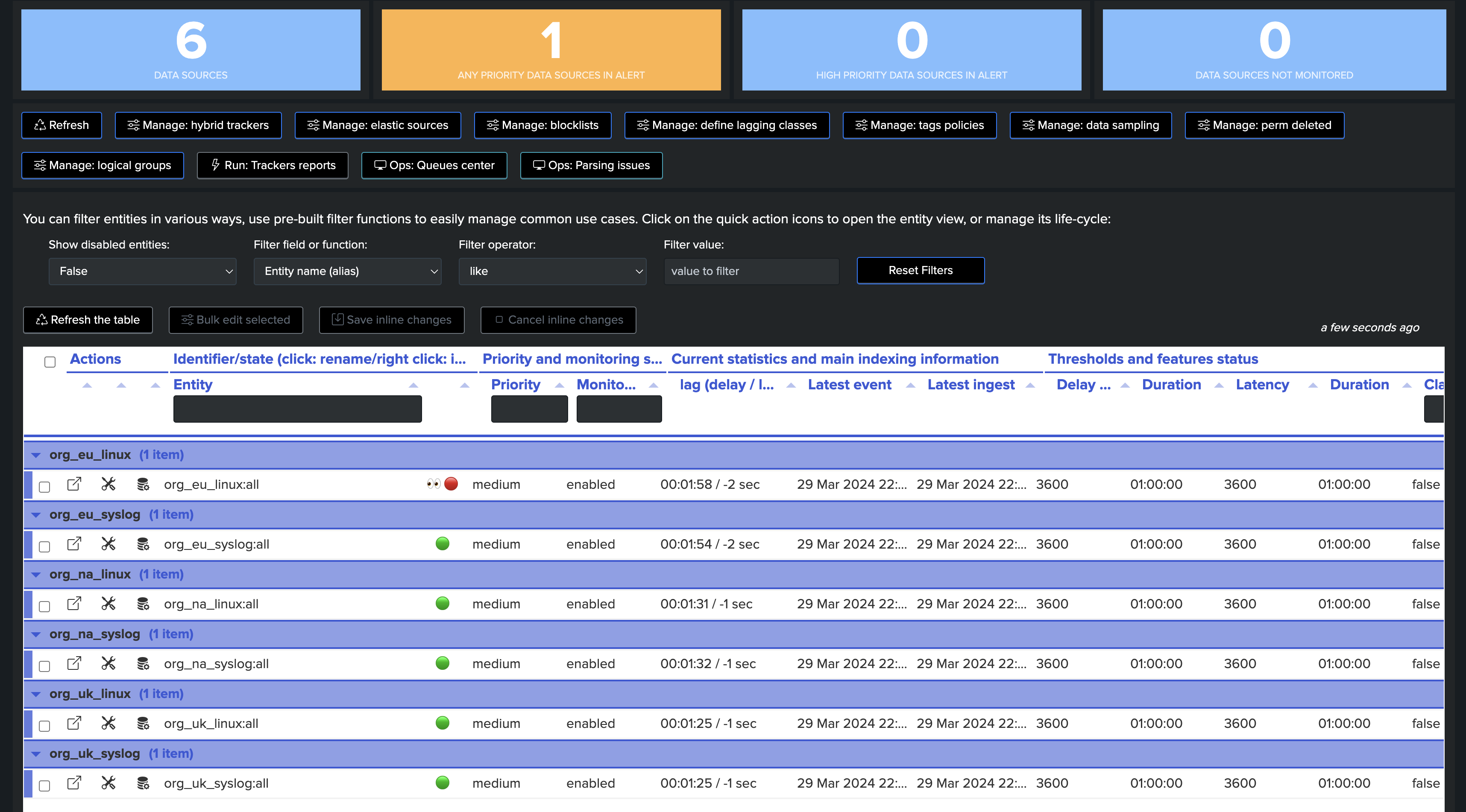

Dark Midnight theme

The Dark Midnight theme was the default Tabulator theme since TrackMe 2.0.0, and before TrackMe 2.0.87:


Light theme

A light theme:

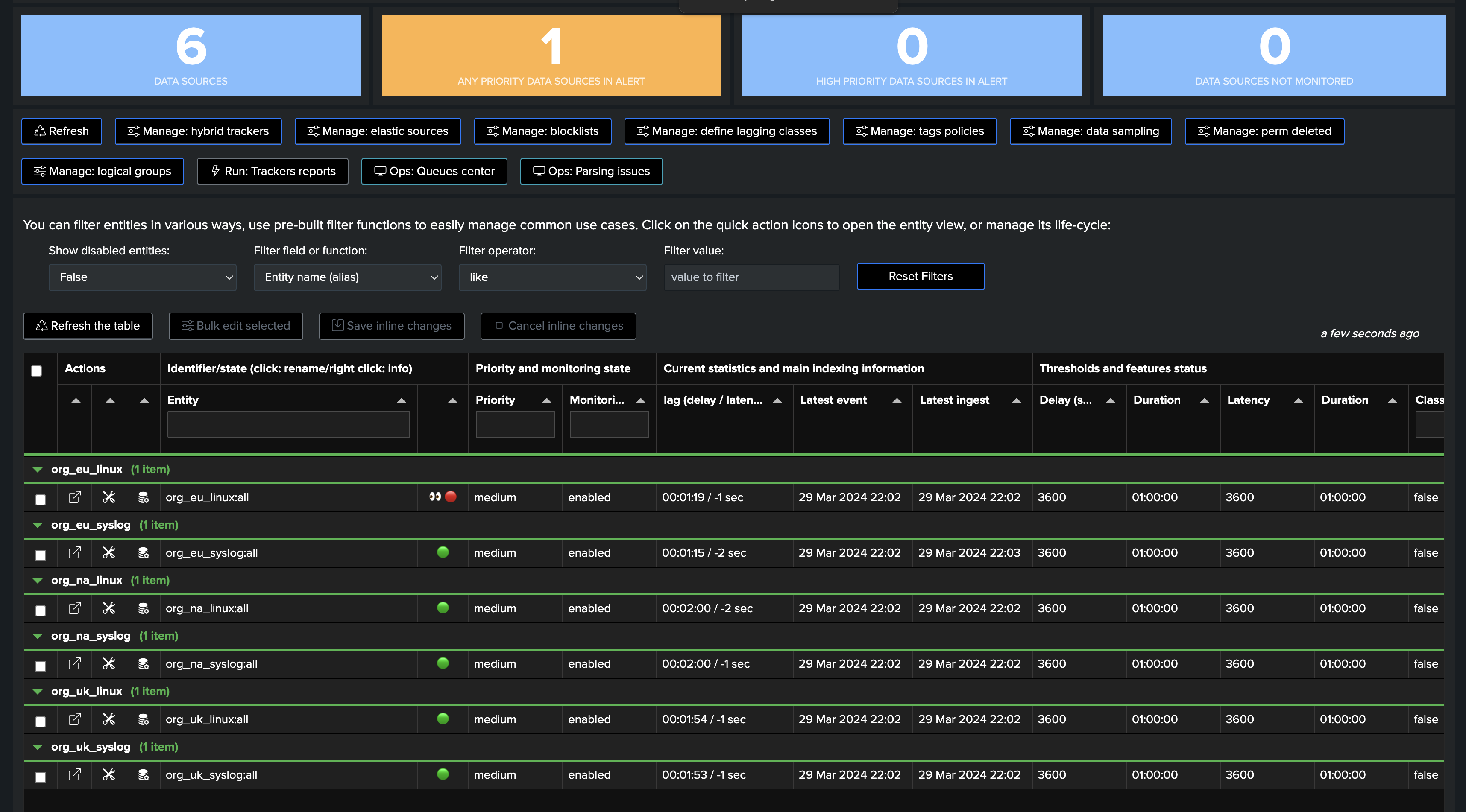

Light Site theme

A light alternative theme:


Light Modern theme

Another light alternative theme:
